A Method to Subtract Background from an Image

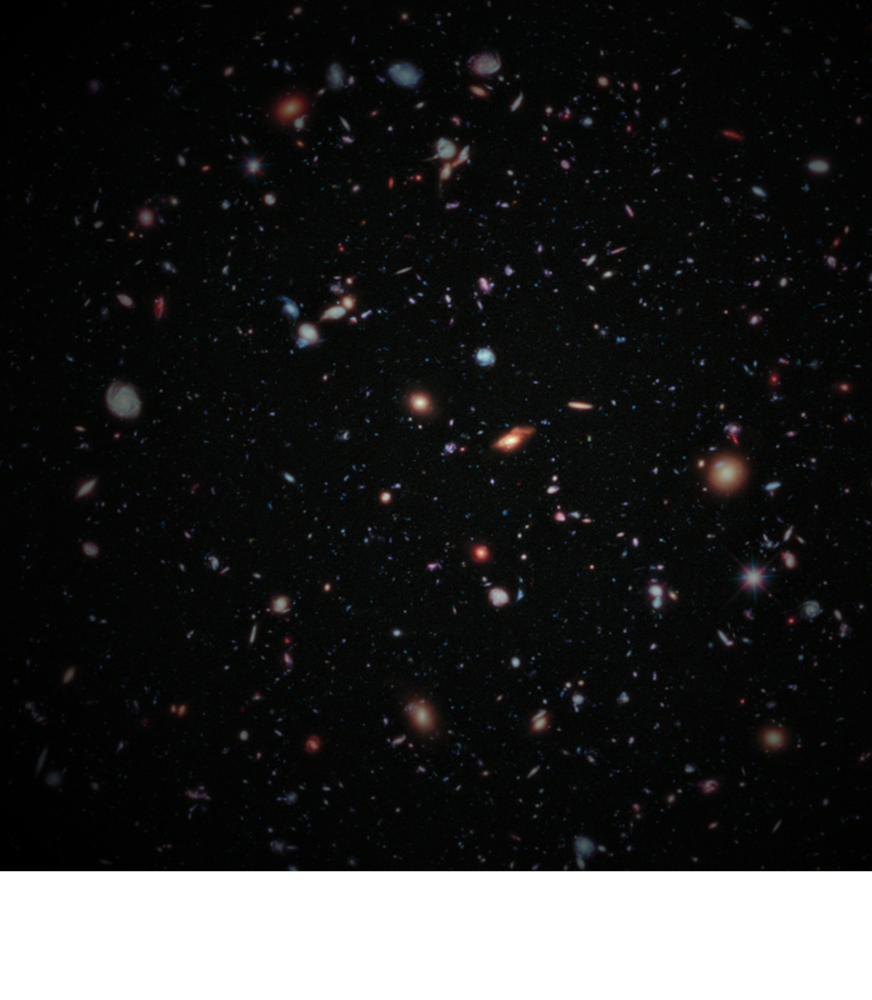

This example shows how to subtract a background from an image.

The background is created via the mipmap levels of the image so that the background does not need to be computed per pixel during each render cycle. The mipmap level is sampled from to create the background.

One can adjust the background level via the dropdown menu. Each level subtracts a subsampled background from the image with the subsampling increasing by a power of 2 with each level. Level 0 is the original image with no background subtraction.

Imageio: 'hubble_deep_field.png' was not found on your computer; downloading it now.
Try 1. Download from https://github.com/imageio/imageio-binaries/raw/master/images/hubble_deep_field.png (1.6 MB)
Downloading: 8192/1668706 bytes (0.5%)1668706/1668706 bytes (100.0%)
  Done
File saved as /home/docs/.imageio/images/hubble_deep_field.png.

import imageio.v3 as iio
import numpy as np
from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx
from pygfx.renderers.wgpu import register_wgpu_render_function
from pygfx.renderers.wgpu.shaders.imageshader import ImageShader
from wgpu.utils.imgui import ImguiRenderer
from imgui_bundle import imgui


# Load image
im = iio.imread("imageio:hubble_deep_field.png").astype(np.float32)
X, Y = np.meshgrid(
    np.arange(im.shape[1]) - im.shape[1] / 2, np.arange(im.shape[0]) - im.shape[0] / 2
)
radius = np.sqrt(X**2 + Y**2)
im *= 1 - radius[..., np.newaxis] / radius.max()
im = im.astype(np.uint8)

canvas_size = im.shape[0], im.shape[1]
canvas = RenderCanvas(size=canvas_size, max_fps=999)
renderer = gfx.renderers.WgpuRenderer(canvas, show_fps=True)
scene = gfx.Scene()
camera = gfx.OrthographicCamera(canvas_size[0], canvas_size[1])
camera.local.y = canvas_size[1] / 2
camera.local.scale_y = -1
camera.local.x = canvas_size[0] / 2
controller = gfx.PanZoomController(camera, register_events=renderer)


image_texture = gfx.Texture(im, dim=2, generate_mipmaps=True)


class BackGroundRemovedImageMaterial(gfx.ImageBasicMaterial):
    """
    An image that has the background removed.
    """

    uniform_type = dict(
        gfx.ImageBasicMaterial.uniform_type,
        background_level="u4",
    )

    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)
        self.background_level = 0

    @property
    def background_level(self):
        return self.uniform_buffer.data["background_level"]

    @background_level.setter
    def background_level(self, value):
        self.uniform_buffer.data["background_level"] = int(value)
        self.uniform_buffer.update_range()


@register_wgpu_render_function(gfx.Image, BackGroundRemovedImageMaterial)
class BackGroundRemovedImageShader(ImageShader):
    def __init__(self, wobject):
        super().__init__(wobject)

    def get_code(self):
        code = super().get_code()
        code = code.replace(
            """
    let value = sample_im(varyings.texcoord.xy, sizef);
""",
            """
    // Get the image value via bilinear interpolation
    var value: vec4<f32> = textureSampleLevel(t_img, s_img, varyings.texcoord.xy, 0.);

    let background_level = f32(u_material.background_level);
    if background_level != 0.0 {
        // Get the background value via bilinear interpolation
        let background = textureSampleLevel(t_img, s_img, varyings.texcoord.xy, background_level);

        value = vec4<f32>(
            (value.rgb - background.rgb),
            value.a
        );
    }
""",
        )
        return code


image = gfx.Image(
    gfx.Geometry(grid=image_texture),
    BackGroundRemovedImageMaterial(clim=(0, 255), interpolation="linear"),
)
scene.add(image)

current_background_index = 0
current_image_index = 0


def draw_imgui():
    global current_background_index
    global current_image_index
    global im, image_texture

    imgui.set_next_window_size((400, 0), imgui.Cond_.always)
    imgui.set_next_window_pos((0, 0), imgui.Cond_.always)

    is_expand, _ = imgui.begin("Controls", None)

    if is_expand:
        background_levels = ["0", "1", "2", "3", "4", "5", "6", "7", "8"]
        # Background level selection dropdown
        changed, current_background_index = imgui.combo(
            "Background Level",
            current_background_index,
            background_levels,
            len(background_levels),
        )

        if changed:
            image.material.background_level = np.int32(
                background_levels[current_background_index]
            )

    imgui.end()


# Create GUI renderer
gui_renderer = ImguiRenderer(renderer.device, canvas)


def animate():
    renderer.render(scene, camera)
    renderer.flush()
    gui_renderer.render()
    canvas.request_draw()


gui_renderer.set_gui(draw_imgui)

if __name__ == "__main__":
    canvas.request_draw(animate)
    loop.run()
