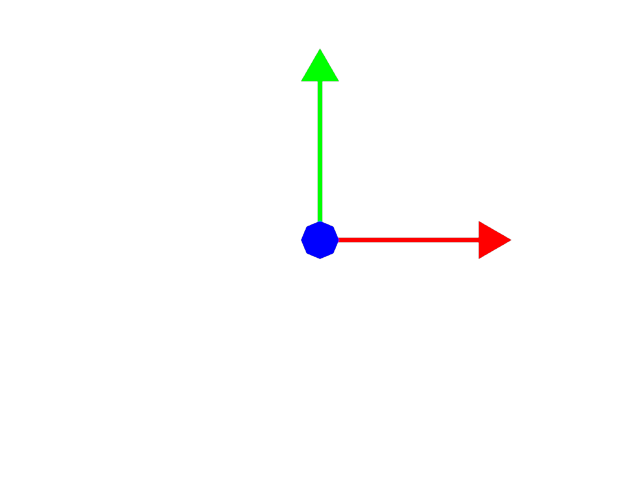

Axes Helper 1

Example showing the axes helper.

• The axes must be centered in the middle.

• The red axes (x) must be to the right.

• The green axes (y) must be to the top.

• The blue axes (z) is not visible.

from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx


canvas = RenderCanvas()
renderer = gfx.renderers.WgpuRenderer(canvas)

scene = gfx.Scene()
scene.add(gfx.AxesHelper(size=40, thickness=5))
camera = gfx.OrthographicCamera(100, 100)

canvas.request_draw(lambda: renderer.render(scene, camera))

if __name__ == "__main__":
    print(__doc__)
    loop.run()

Interactive example

Try this example in your browser using Pyodide. Might not work with all examples and all devices. Check the output and your browser’s console for details.
