Text outline always behind text itself

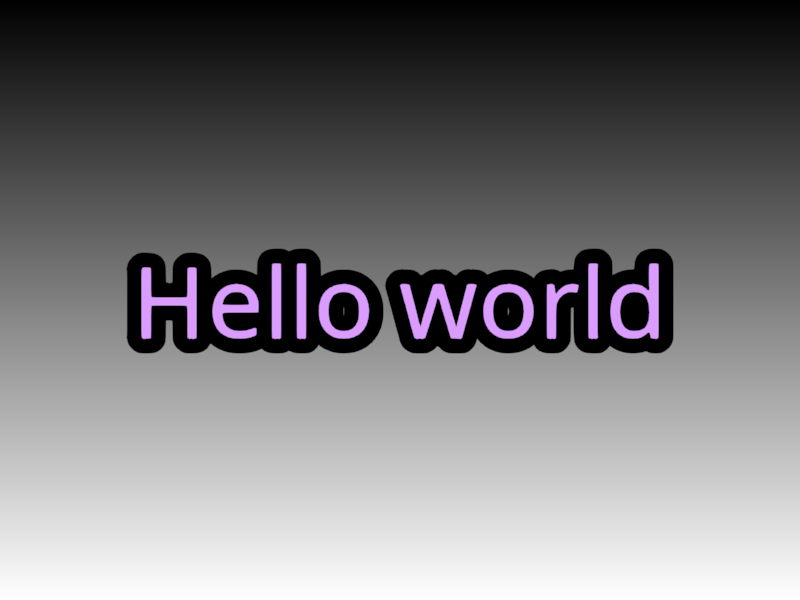

Example demonstrating the capabilities of text outline to stay behind the text itself, even for very thick value of the outline thickness where the outline of one character may overlap with the neighboring one.

from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx

scene = gfx.Scene()


scene.add(gfx.Background.from_color("#fff", "#000"))

text = gfx.Text(
    text="Hello world",
    font_size=100,
    screen_space=True,
    text_align="right",
    anchor="middle-center",
    material=gfx.TextMaterial(
        color="#DA9DFF",
        outline_color="#000",
        # Choose a very thick outline to ensure the effect is noticeable
        outline_thickness=0.45,
        aa=False,
    ),
)

scene.add(text)

camera = gfx.OrthographicCamera(4, 3)
renderer = gfx.renderers.WgpuRenderer(RenderCanvas(size=(800, 600)))

renderer.request_draw(lambda: renderer.render(scene, camera))

if __name__ == "__main__":
    loop.run()

Interactive example

Try this example in your browser using Pyodide. Might not work with all examples and all devices. Check the output and your browser’s console for details.
