Text direction

Pygfx text supports multiple text directions. Latin scripts (like English) are left-to-right. A right-to-left direction is used for e.g. Arabic, and top-to-bottom sometimes for Asian languages.

By default pygfx auto-selects a direction based on the script, choosing either between ltr or rtl (Asian languages go ltr).

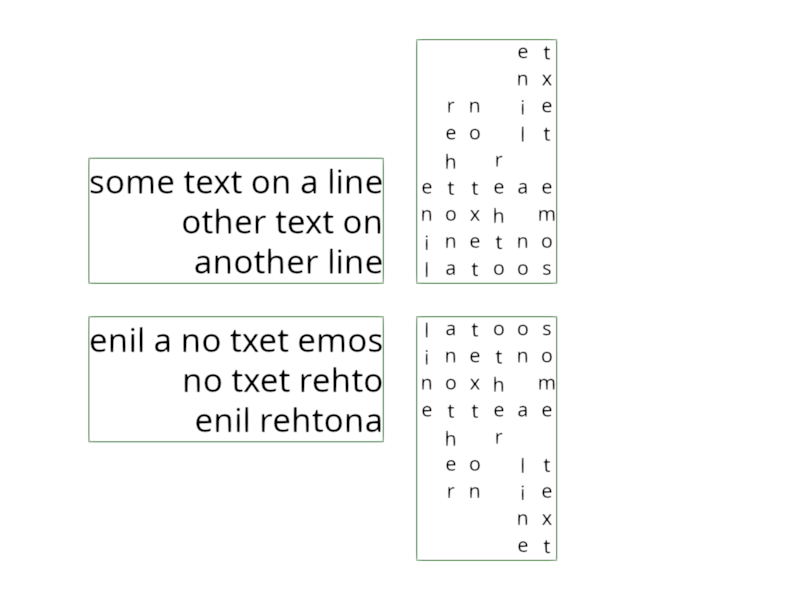

In this example the same piece of (English) text is shown with different directions, and the bounding box for each text is also shown. A correct bounding box is a pretty good indicator that all anchor variants work (testing all anchors for all directions would be a lot).

from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx

scene = gfx.Scene()


scene.add(gfx.Background.from_color("#fff"))
text = """
some text on a line
other text on another line
""".strip()


material = gfx.TextMaterial(color="#000", aa=True)


text1 = gfx.Text(
    text=text,
    direction="ltr",
    font_size=1,
    max_width=10,
    text_align="right",
    anchor="bottom-right",
    anchor_offset=0.5,
    material=material,
)

text2 = gfx.Text(
    text=text,
    direction="rtl",
    font_size=1,
    max_width=10,
    text_align="right",
    anchor="top-right",
    anchor_offset=0.5,
    material=material,
)

text3 = gfx.Text(
    text=text,
    direction="btt",
    font_size=0.6,
    max_width=8,
    anchor="bottom-left",
    anchor_offset=0.5,
    material=material,
)

text4 = gfx.Text(
    text=text,
    direction="ttb",
    font_size=0.6,
    max_width=8,
    anchor="top-left",
    anchor_offset=0.5,
    material=material,
)


scene.add(text1, text2, text3, text4)


for text in (text1, text2, text3, text4):
    bh = gfx.BoxHelper(color="green")
    bh.set_transform_by_object(text)
    text.add(bh)

camera = gfx.OrthographicCamera(24, 18)

renderer = gfx.renderers.WgpuRenderer(RenderCanvas(size=(800, 600)))

renderer.request_draw(lambda: renderer.render(scene, camera))

if __name__ == "__main__":
    loop.run()

Interactive example

Try this example in your browser using Pyodide. Might not work with all examples and all devices. Check the output and your browser’s console for details.
