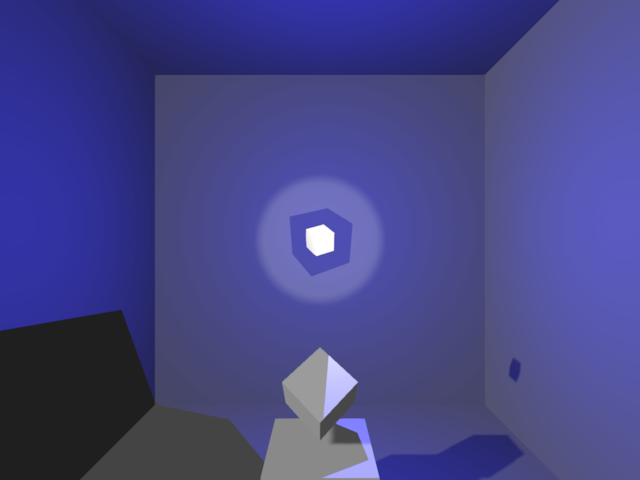

Light and Shadow

This example combines MeshPhongMaterial and MeshStandardMaterial with PointLight, AmbientLight, SpotLight and DirectionalLight to check that all combinations are working properly.

from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx
import pylinalg as la
import numpy as np

canvas = RenderCanvas()
renderer = gfx.renderers.WgpuRenderer(canvas)
scene = gfx.Scene()

cube = gfx.Mesh(
    gfx.box_geometry(20, 20, 20),
    gfx.MeshPhongMaterial(),
)
cube.local.rotation = la.quat_from_euler((np.pi / 6, np.pi / 6), order="XY")
cube.cast_shadow = True
scene.add(cube)

cube2 = gfx.Mesh(
    gfx.box_geometry(50, 50, 50),
    gfx.MeshPhongMaterial(),
)
cube2.local.rotation = la.quat_from_euler((np.pi / 4, np.pi / 4), order="XY")
cube2.local.position = (0, -150, 0)
cube2.cast_shadow = True
cube2.receive_shadow = True
scene.add(cube2)

cube3 = gfx.Mesh(
    gfx.box_geometry(100, 100, 100),
    gfx.MeshPhongMaterial(),
)
cube3.local.position = (0, -250, 0)
cube3.cast_shadow = True
cube3.receive_shadow = True
scene.add(cube3)

box = gfx.Mesh(
    gfx.box_geometry(600, 600, 600),
    gfx.MeshStandardMaterial(color="#808080", side="Back"),
)
box.local.rotation = la.quat_from_euler(-np.pi / 2, order="X")
box.local.position = (0, 0, 0)
box.receive_shadow = True
box.cast_shadow = False
scene.add(box)

ambient = gfx.AmbientLight()
scene.add(ambient)

light = gfx.PointLight("#4040ff", 500000, decay=2)
light.local.x = 15
light.local.y = 20
light.cast_shadow = True
scene.add(light)

light2 = gfx.DirectionalLight("#aaaaaa")
light2.local.position = (-150, 100, 100)
light2.cast_shadow = True
scene.add(light2)

light3 = gfx.SpotLight("#ffffff", 500, angle=0.3, penumbra=0.2, decay=1)
light3.local.position = (0, 0, 100)
light3.cast_shadow = True
scene.add(light3)

camera = gfx.PerspectiveCamera(70, 16 / 9, depth_range=(0.1, 2000))
camera.local.z = 350

canvas.request_draw(lambda: renderer.render(scene, camera))


if __name__ == "__main__":
    loop.run()
