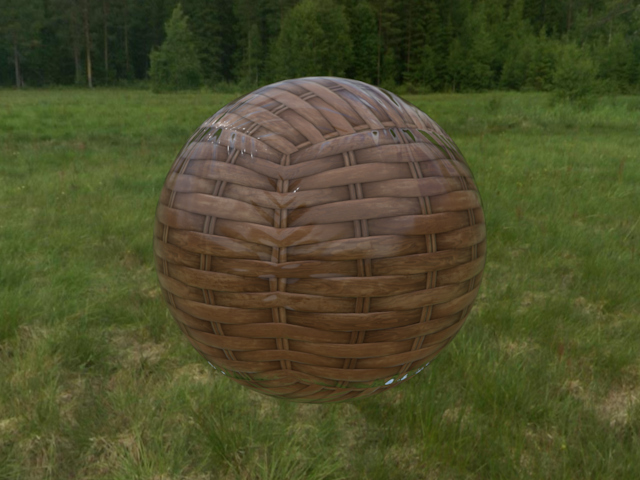

Clearcoat effect

This example demonstrates the clearcoat effect.

Note

To run this example, you need a model from the source repo’s example folder. If you are running this example from a local copy of the code (dev install) no further actions are needed. Otherwise, you may have to replace the path below to point to the location of the model.

import os
from pathlib import Path

try:
    # modify this line if your model is located elsewhere
    model_dir = Path(__file__).parents[1] / "data"
except NameError:
    # compatibility with sphinx-gallery
    model_dir = Path(os.getcwd()).parent / "data"

Once the path is set correctly, you can use the model as follows:

import imageio.v3 as iio
from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx

# Init
canvas = RenderCanvas(size=(640, 480), title="clearcoat")
renderer = gfx.renderers.WgpuRenderer(canvas)
scene = gfx.Scene()

# Read cube image and turn it into a 3D image (a 4d array)
env_img = iio.imread("imageio:meadow_cube.jpg")
cube_size = env_img.shape[1]
env_img.shape = 6, cube_size, cube_size, env_img.shape[-1]

# Create environment map
env_tex = gfx.Texture(
    env_img, dim=2, size=(cube_size, cube_size, 6), generate_mipmaps=True
)

# Apply env map to skybox
background = gfx.Background(None, gfx.BackgroundSkyboxMaterial(map=env_tex))
scene.add(background)

# Load meshes, and apply env map
# Note that this lights the helmet already
gltf_path = model_dir / "ClearcoatWicker.glb"

gltf = gfx.load_gltf(gltf_path)

# gfx.print_scene_graph(gltf.scene)  # Uncomment to see the tree structure

scene.add(gltf.scene)


def add_env_map(obj):
    if isinstance(obj, gfx.Mesh) and isinstance(obj.material, gfx.MeshStandardMaterial):
        obj.material.env_map = env_tex


gltf.scene.traverse(add_env_map)

light = gfx.SpotLight(color="#444")
light.local.position = (-500, 1000, -1000)
scene.add(light, gfx.AmbientLight(intensity=0.2))

# Create camera and controller
camera = gfx.PerspectiveCamera(45, 640 / 480)
camera.show_object(gltf.scene, view_dir=(1.8, -0.6, -2.7))
controller = gfx.OrbitController(camera, register_events=renderer)


def animate():
    renderer.render(scene, camera)
    canvas.request_draw()


if __name__ == "__main__":
    renderer.request_draw(animate)
    loop.run()

Interactive example

Try this example in your browser using Pyodide. Might not work with all examples and all devices. Check the output and your browser’s console for details.
