Directional Shadow 1

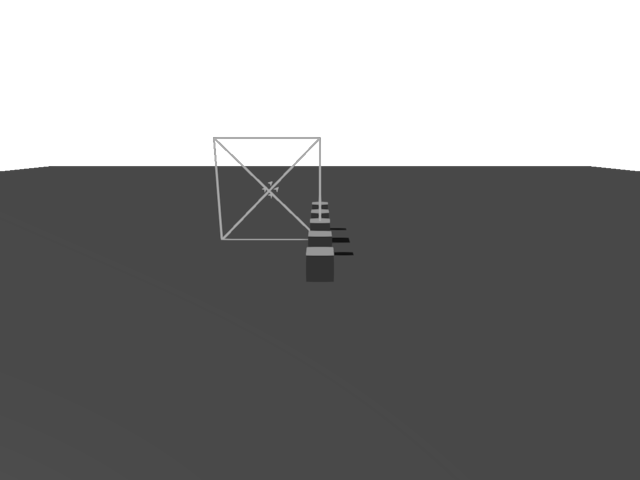

This example demonstrates directional light shadows and their helper. The cubes within the view frustum of the shadow camera have complete shadows, the cubes at the edge of the view frustum of the camera have partial shadows, while the cubes outside the view frustum of the camera will not cast shadows.

import math
import pylinalg as la

from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx

renderer = gfx.renderers.WgpuRenderer(RenderCanvas())
scene = gfx.Scene()

floor = gfx.Mesh(
    gfx.plane_geometry(2000, 2000),
    gfx.MeshPhongMaterial(color="#808080", side="Front"),
)

floor.local.rotation = la.quat_from_euler(-math.pi / 2, order="X")
floor.receive_shadow = True

scene.add(floor)

ambient = gfx.AmbientLight("#fff", 0.1)
scene.add(ambient)

light = gfx.DirectionalLight("#aaaaaa")
light.local.x = -50
light.local.y = 50
light.cast_shadow = True

light.shadow.camera.width = 100
light.shadow.camera.height = 100

scene.add(light.add(gfx.DirectionalLightHelper(30, show_shadow_extent=True)))

box = gfx.box_geometry(20, 20, 20)
material = gfx.MeshPhongMaterial()

for i in range(5):
    cube = gfx.Mesh(box, material)
    cube.local.position = (0, 10, i * 50 - 100)
    cube.cast_shadow = True
    scene.add(cube)


camera = gfx.PerspectiveCamera(70, 16 / 9)
camera.local.y = 100
camera.local.z = 350
camera.show_pos((0, 0, 0))

controller = gfx.OrbitController(camera, register_events=renderer)


def animate():
    renderer.render(scene, camera)
    renderer.request_draw()


if __name__ == "__main__":
    renderer.request_draw(animate)
    loop.run()
