Gizmo to transform world objects

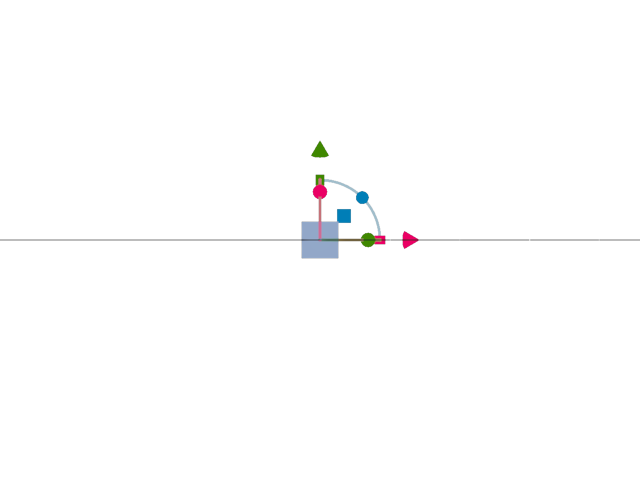

Example to demonstrate the Gizmo that can be used to transform world objects. Click the center sphere to toggle between object-space, world-space, and screen-space.

from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx


canvas = RenderCanvas()
renderer = gfx.renderers.WgpuRenderer(canvas)
viewport = gfx.Viewport(renderer)
scene = gfx.Scene()

cube = gfx.Mesh(
    gfx.box_geometry(1, 1, 1),
    gfx.MeshPhongMaterial(color="#336699"),
)
scene.add(cube)

scene.add(gfx.GridHelper())


camera = gfx.PerspectiveCamera(70, 16 / 9)
camera.show_object(scene)
controller = gfx.OrbitController(camera, register_events=renderer)

scene.add(gfx.AmbientLight(), camera.add(gfx.DirectionalLight()))

gizmo = gfx.TransformGizmo(cube)
gizmo.add_default_event_handlers(viewport, camera)


def animate():
    # We render the scene, and then the gizmo on top,
    # as an overlay, so that it's always on top.
    viewport.render(scene, camera)
    viewport.render(gizmo, camera)
    renderer.flush()


if __name__ == "__main__":
    canvas.request_draw(animate)
    loop.run()

Interactive example

Try this example in your browser using Pyodide. Might not work with all examples and all devices. Check the output and your browser’s console for details.
