Directional Shadow 2

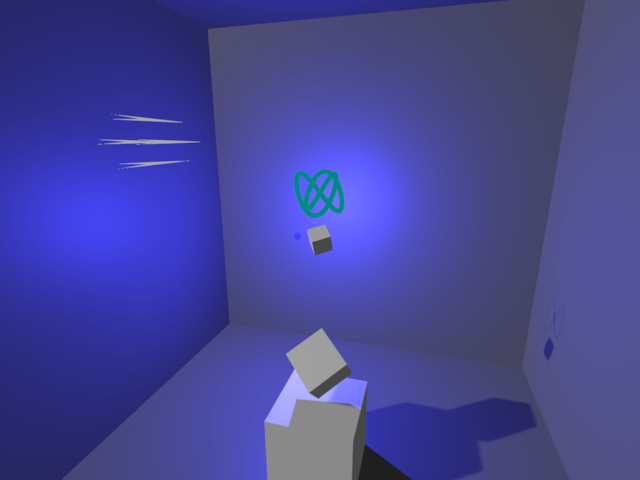

This example demonstrates the effects of directional light shadows (from DirectionalLight) and omnidirectional shadows (from PointLight).

import time
import math
import pylinalg as la

from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx
import numpy as np


renderer = gfx.renderers.WgpuRenderer(RenderCanvas())
scene = gfx.Scene()

cube = gfx.Mesh(
    gfx.box_geometry(20, 20, 20),
    gfx.MeshPhongMaterial(),
)
cube.local.rotation = la.quat_from_euler((math.pi / 6, math.pi / 6), order="XY")
cube.cast_shadow = True
scene.add(cube)

cube2 = gfx.Mesh(
    gfx.box_geometry(50, 50, 50),
    gfx.MeshPhongMaterial(),
)
cube2.local.rotation = la.quat_from_euler((math.pi / 4, math.pi / 4), order="XY")
cube2.local.position = (0, -150, 0)
cube2.cast_shadow = True
cube2.receive_shadow = True
scene.add(cube2)

cube3 = gfx.Mesh(
    gfx.box_geometry(100, 100, 100),
    gfx.MeshPhongMaterial(),
)

cube3.local.position = (0, -250, 0)
cube3.cast_shadow = True
cube3.receive_shadow = True
scene.add(cube3)

t = np.linspace(0, 10, 100).astype(np.float32)
xyz = 20 * np.sin(2 * t), 20 * np.sin(3 * t) + 50, 20 * np.sin(t)
line1 = gfx.Line(
    gfx.Geometry(positions=np.column_stack(xyz)),
    gfx.LineMaterial(color="#088", thickness=5),
)
line1.cast_shadow = True
scene.add(line1)

box = gfx.Mesh(
    gfx.box_geometry(600, 600, 600),
    gfx.MeshPhongMaterial(color="#808080", side="Back"),
)

box.local.rotation = la.quat_from_euler((-math.pi / 2), order="XY")
box.local.position = (0, 0, 0)
box.receive_shadow = True
box.cast_shadow = False
scene.add(box)

ambient = gfx.AmbientLight()

scene.add(ambient)

light = gfx.PointLight("#4040ff", 500000, decay=2)
light.local.x = 15
light.local.y = 20

light.cast_shadow = True
scene.add(light.add(gfx.PointLightHelper(5)))

light2 = gfx.DirectionalLight("#aaaaaa")
light2.local.position = (-150, 100, 100)
light2.cast_shadow = True

scene.add(light2.add(gfx.DirectionalLightHelper(100)))

camera = gfx.PerspectiveCamera(70, 16 / 9)
camera.local.position = (100, 100, 350)
camera.show_pos((0, 0, 0))

controller = gfx.OrbitController(camera, register_events=renderer)


def animate():
    t = time.time() * 0.5
    scale = 150

    light.local.position = (
        math.cos(t) * math.cos(3 * t) * scale,
        math.cos(3 * t) * math.sin(t) * scale / 2,
        math.sin(3 * t) * scale,
    )

    renderer.render(scene, camera)
    renderer.request_draw()


if __name__ == "__main__":
    renderer.request_draw(animate)
    loop.run()
