Image stitching

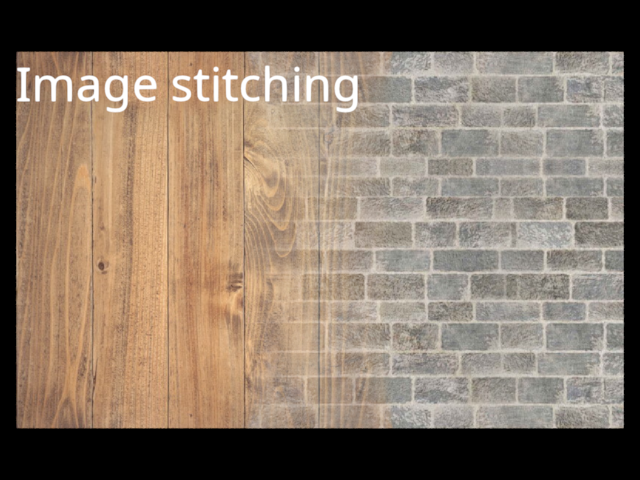

Show stitching of images using weighted alpha mode. The alpha value of the images are used as weights.

Imageio: 'wood.jpg' was not found on your computer; downloading it now.
Try 1. Download from https://github.com/imageio/imageio-binaries/raw/master/images/wood.jpg (97 kB)
Downloading: 8192/98922 bytes (8.3%)98922/98922 bytes (100.0%)
  Done
File saved as /home/docs/.imageio/images/wood.jpg.

import imageio.v3 as iio
from rendercanvas.auto import RenderCanvas, loop
import pygfx as gfx
import numpy as np

canvas = RenderCanvas()
renderer = gfx.renderers.WgpuRenderer(canvas)
scene = gfx.Scene()
scene.add(gfx.Background.from_color("#000"))


def create_texcoords_array(ny, nx):
    texcoord_x = np.linspace(0, 1, nx, dtype="f4")
    texcoord_y = np.linspace(0, 1, ny, dtype="f4")
    return np.stack(np.meshgrid(texcoord_x, texcoord_y), axis=2)


def create_pyramid_weights(ny, nx):
    texcoords = create_texcoords_array(ny, nx)
    center_coords = 1 - np.abs(texcoords * 2 - 1)
    return center_coords.min(axis=2)


x = 0
for image_name in ["wood.jpg", "bricks.jpg"]:
    rgb = iio.imread(f"imageio:{image_name}")[:, :, :3]  # Drop alpha if it has it
    rgba = np.empty((*rgb.shape[:2], 4), np.uint8)
    weights = create_pyramid_weights(*rgb.shape[:2])
    weights = (weights * 255).astype("u1")
    rgba = np.dstack([rgb, weights])
    image = gfx.Image(
        gfx.Geometry(grid=gfx.Texture(rgba, dim=2)),
        gfx.ImageBasicMaterial(
            clim=(0, 255),
            alpha_mode="weighted_solid",
            depth_write=False,
        ),
    )
    scene.add(image)
    image.local.x = x
    x += rgba.shape[1] - 200

# Text is rendered as an overlay (using render_queue)
text = gfx.Text(
    "Image stitching",
    font_size=64,
    anchor="top-left",
    material=gfx.TextMaterial(color="#fff", aa=True),
)
text.material.render_queue = 4000  # render the text as an overlay
text.local.scale_y = -1
scene.add(text)

camera = gfx.OrthographicCamera()
camera.local.scale_y = -1
camera.show_object(scene, match_aspect=True, scale=1.05)

controller = gfx.PanZoomController(camera, register_events=renderer)


def animate():
    renderer.render(scene, camera)


if __name__ == "__main__":
    canvas.request_draw(animate)
    loop.run()
